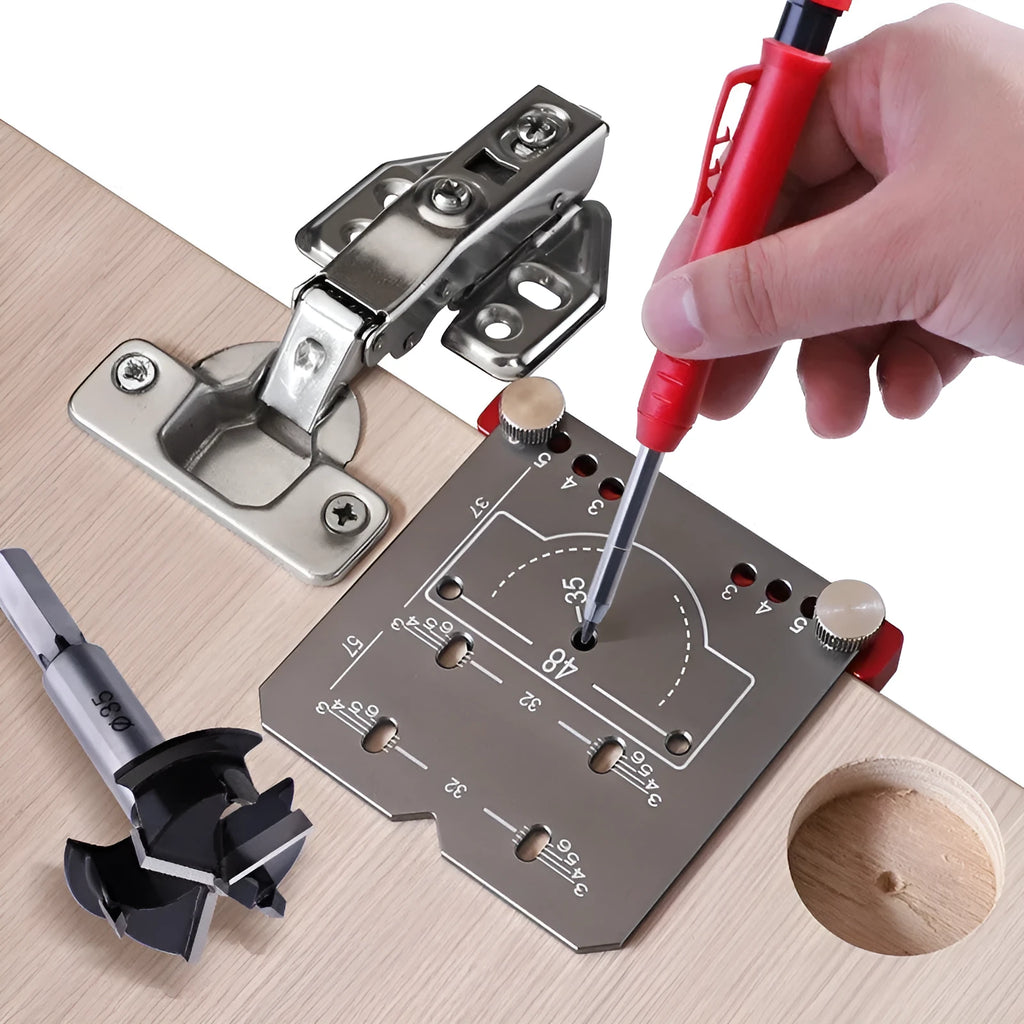

35mm hinge locator tool with adjustable margin settings for cabinet door and wardrobe installation

This hinge punch locator provides woodworkers, cabinet makers, and DIY enthusiasts with a specialised tool designed to simplify the installation of 35mm hinges. Rather than measuring and marking hinge positions manually with multiple tools, this single aluminium alloy device combines several functions into one efficient unit. Its adjustable margin feature allows precise control over hinge placement, which is crucial for ensuring cabinet doors open smoothly and align correctly. The bright red finish makes it easy to see against wood surfaces during use, reducing the chance of misplaced marks that can compromise installation quality.

Features and Construction

The hinge locating tool incorporates several practical features that address common challenges in hinge installation. Its construction focuses on functionality and durability, with material choices selected for their performance characteristics rather than mere aesthetics. This section examines how the tool's design supports accurate marking and repeated use in workshop environments.

Material and Build

The main body of the hinge locator is fabricated from aluminium alloy, a material choice that provides an optimal balance between lightweight handling and structural stability. This aluminium construction ensures the tool feels substantial enough to remain steady during marking operations without being unnecessarily heavy for extended use. The limit tapper blade component is manufactured from hard alloy, with its cutting edge undergoing high-temperature heat treatment during production. This thermal processing increases the blade's hardness and creates a sharp, wear-resistant edge capable of making clean marks on various wood types without frequent resharpening.

Size and Practical Fit

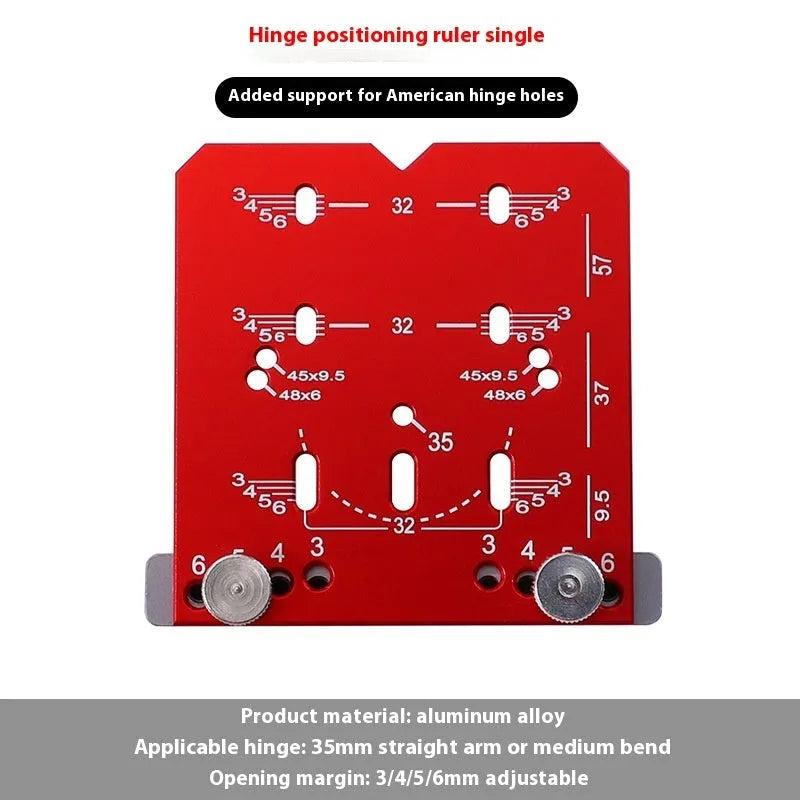

This tool is specifically sized and configured for 35mm extended arm and middle bend hinge types, which represent common standards in cabinet and wardrobe construction. The adjustable margin mechanism offers four precise settings at 3mm, 4mm, 5mm, and 6mm distances, covering the typical range required for most hinge installations. This adjustability eliminates the need for multiple dedicated tools or complex calculations when working with different cabinet designs or personal preferences. The compact form factor ensures the tool fits comfortably in hand tool collections and can be easily transported to different worksites.

Uses and Placement

The hinge locator addresses specific installation scenarios where precision matters most. Its applications range from professional cabinet fitting to home DIY projects, with functionality designed around real-world woodworking requirements. Understanding these use cases helps determine when this tool provides the most value compared to alternative marking methods.

Event or Professional Use

For professional cabinet makers and installers, this tool offers time-saving advantages during multiple hinge installations. When fitting complete kitchen cabinet sets or wardrobe systems requiring numerous identical hinges, the adjustable margin feature ensures consistent placement across all doors. The hard alloy blade maintains its sharpness through extended use, reducing downtime for tool maintenance during larger projects. Professionals will appreciate how the tool standardises what can otherwise be a variable process when marking hinge positions manually, potentially reducing callbacks for alignment issues.

Everyday Home Use

DIY enthusiasts undertaking home improvement projects benefit from the tool's simplified approach to what can be a technically challenging task. Installing or replacing cabinet hinges often requires precise measurements and careful marking that can intimidate less experienced woodworkers. This hinge locator provides clear guidance through its adjustable settings, helping users achieve professional-looking results without extensive experience. The single-unit design means homeowners don't need to purchase multiple specialised tools for occasional hinge installation projects, representing practical value for infrequent use.

Benefits and Buying Value

The hinge locator tool provides measurable advantages over alternative marking methods, though these benefits should be understood within the context of its specific design parameters. This section examines the practical value proposition without exaggeration, focusing on how the tool's features translate to real-world utility across different user scenarios.

Reuse and Low Maintenance

The aluminium alloy and hard alloy construction suggests this tool is designed for repeated use rather than single-project applications. The heat-treated blade edge maintains its marking capability through multiple installations without requiring frequent sharpening or replacement. This durability makes the tool suitable for both occasional DIY projects and more regular professional use. The simple mechanical design without complex moving parts or electronic components reduces potential failure points and simplifies cleaning after use, requiring only basic care to maintain functionality.

Why Choose This Product

This hinge locator tool addresses a specific gap in many woodworkers' tool collections—a dedicated device for accurately marking hinge positions. While experienced craftspeople might develop their own marking systems using combination squares and measuring tapes, this specialised tool standardises the process with predefined margin settings. For those installing 35mm hinges, whether in kitchen cabinetry, wardrobe doors, or other furniture projects, the tool provides confidence through its designed-for-purpose functionality. The adjustable margin feature accommodates different installation preferences without requiring separate tools for each setting.
