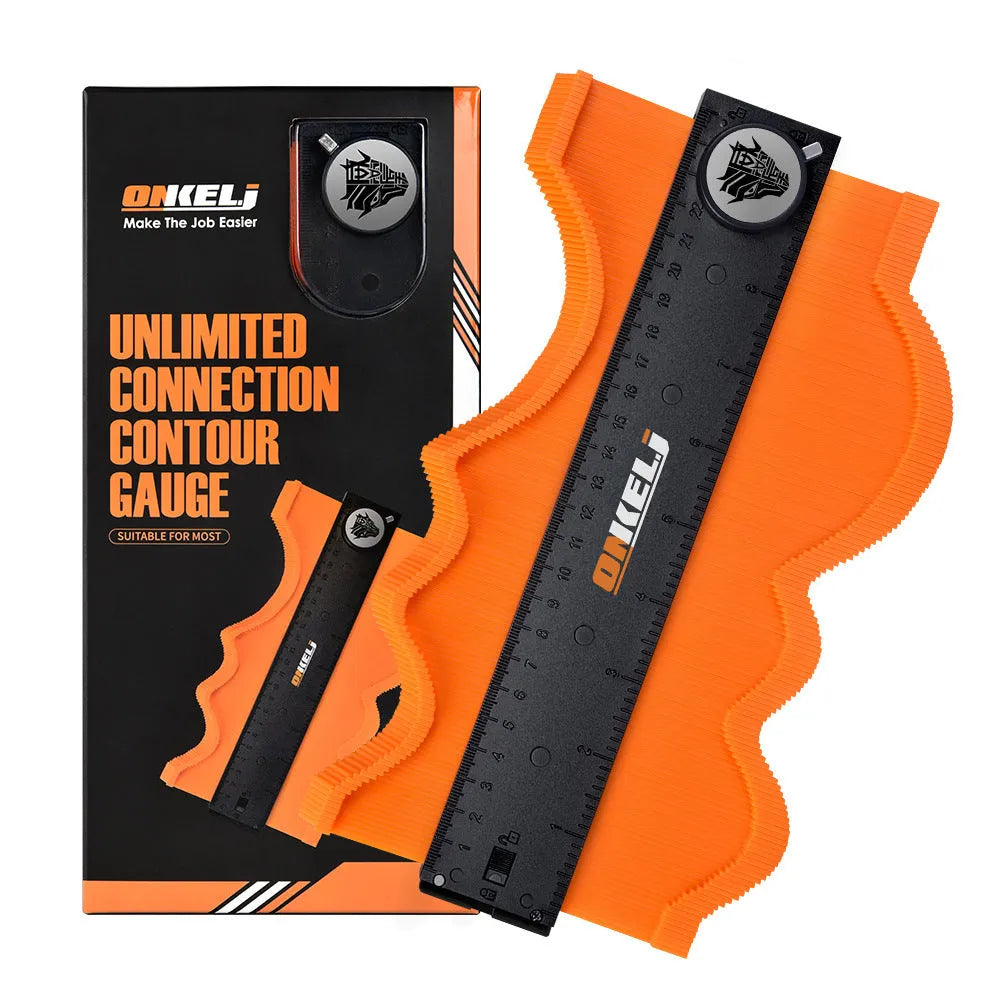

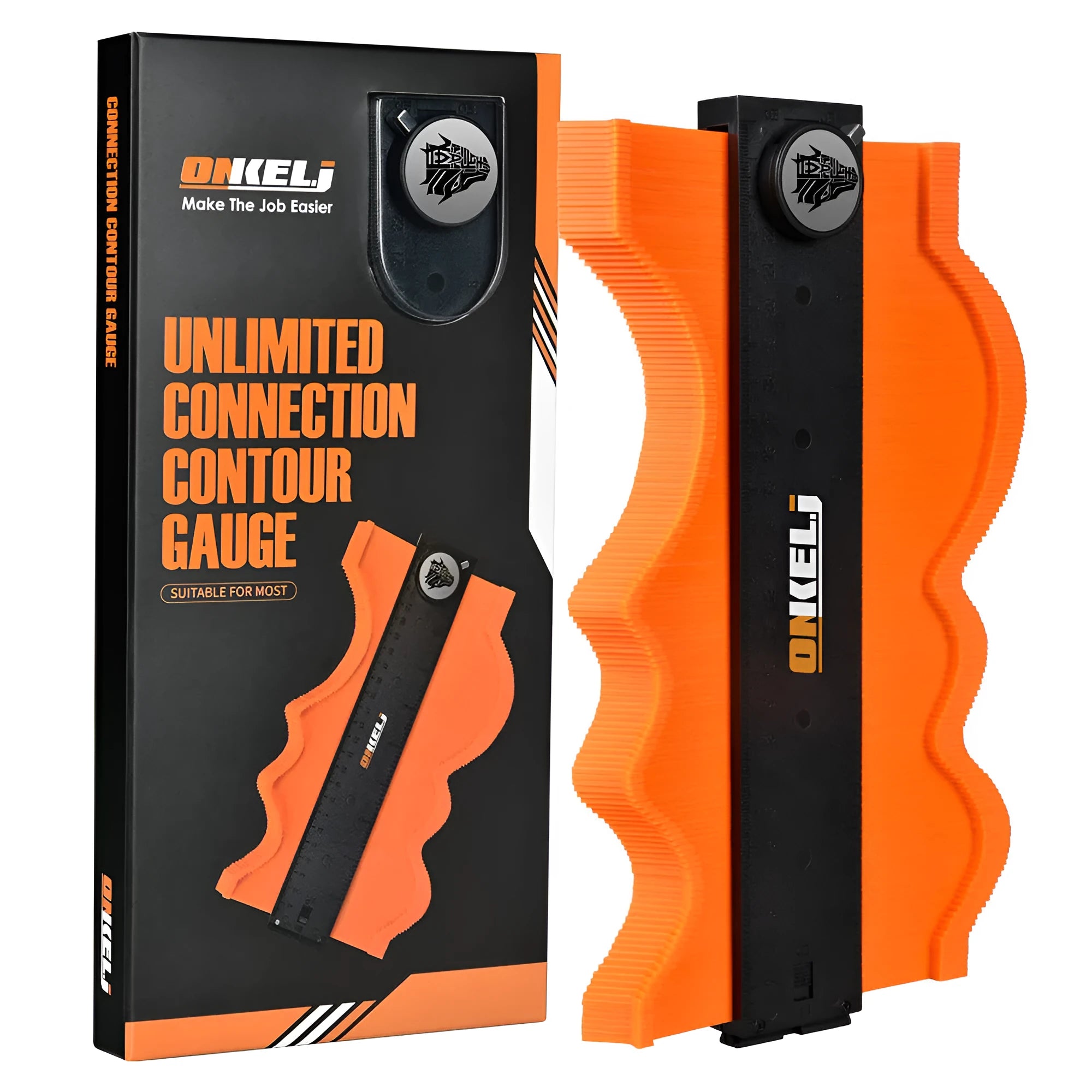

10-Inch Unlimited Stitching Contour Gauge with Lock Belt Positioning for Precise Profiling

When working with curved surfaces, irregular edges, or complex shapes in woodworking, tiling, or DIY projects, transferring accurate profiles to your materials becomes essential. This contour gauge provides a practical solution with its unlimited stitching capability that adapts to extended contours and a lock belt positioning system that holds the captured profile securely. Constructed from ABS plastic and stainless steel, it combines durability with precision engineering, while the 265mm × 130mm × 27mm dimensions offer a substantial working surface for most common profiling tasks. With 1mm accuracy, this tool helps eliminate guesswork and material waste when matching shapes during installation or fabrication work.

Features and Construction

The contour gauge incorporates several design elements that make it suitable for professional and DIY applications requiring accurate shape transfer. Its construction focuses on practical functionality rather than unnecessary complexity, using materials chosen for their performance characteristics in measurement tools.

Material and Build

ABS plastic forms the main body structure, providing impact resistance and dimensional stability while keeping the tool lightweight for easy handling. Stainless steel components, including the moving pins and lock mechanism, offer corrosion resistance and maintain smooth operation through repeated use cycles. This material combination ensures the gauge withstands workshop environments without degrading in accuracy or function over time.

Size and Practical Fit

Measuring 265mm in length by 130mm wide by 27mm thick, this gauge provides sufficient coverage for most contour measurement scenarios encountered in construction, flooring, or craft projects. The 10-inch working area (approximately 254mm) allows for capturing substantial curve sections or multiple smaller profiles. These dimensions make the tool portable enough for site work while providing adequate surface area for accurate shape replication.

Uses and Placement

This contour gauge serves multiple applications where precise shape matching is required between surfaces or materials. Its design accommodates both professional installation scenarios and home DIY projects where accuracy impacts the final result.

Event or Professional Use

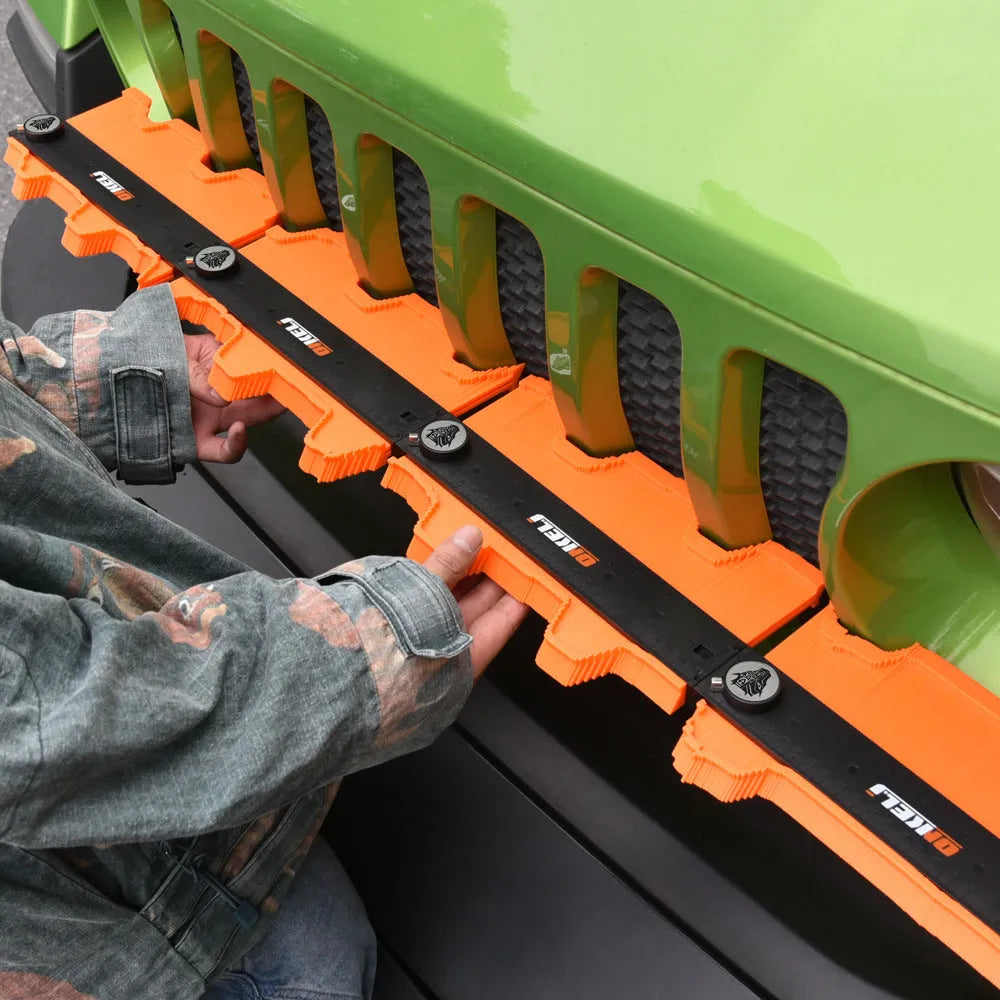

For tradespeople installing flooring, tiles, worktops, or architectural elements, the gauge accurately transfers irregular shapes to cutting materials, reducing waste and improving fit. The lock mechanism holds complex profiles during marking operations, while the unlimited stitching capability handles extended contours that exceed standard gauge lengths. The 1mm accuracy supports professional standards where precise joins between materials are visibly important.

Everyday Home Use

DIY enthusiasts benefit from the gauge when fitting laminate flooring around door frames, cutting tiles to match existing layouts, or creating custom templates for craft projects. The straightforward operation—pressing against contours and locking the profile—requires minimal technical skill while delivering professional-level results. Home workshops will find it particularly useful for one-off projects where purchasing specialised profiling equipment isn't justified.

Benefits and Buying Value

This contour gauge offers practical advantages through its design features and material choices, providing value through accurate performance and durability in measurement applications.

Reuse and Low Maintenance

The ABS and stainless steel construction requires minimal maintenance beyond occasional cleaning with a dry cloth to remove debris from the pin mechanisms. No lubrication or specialised care is needed, and the materials resist corrosion and wear under normal workshop conditions. This durability supports repeated use across multiple projects without degradation in accuracy or function.

Why Choose This Product

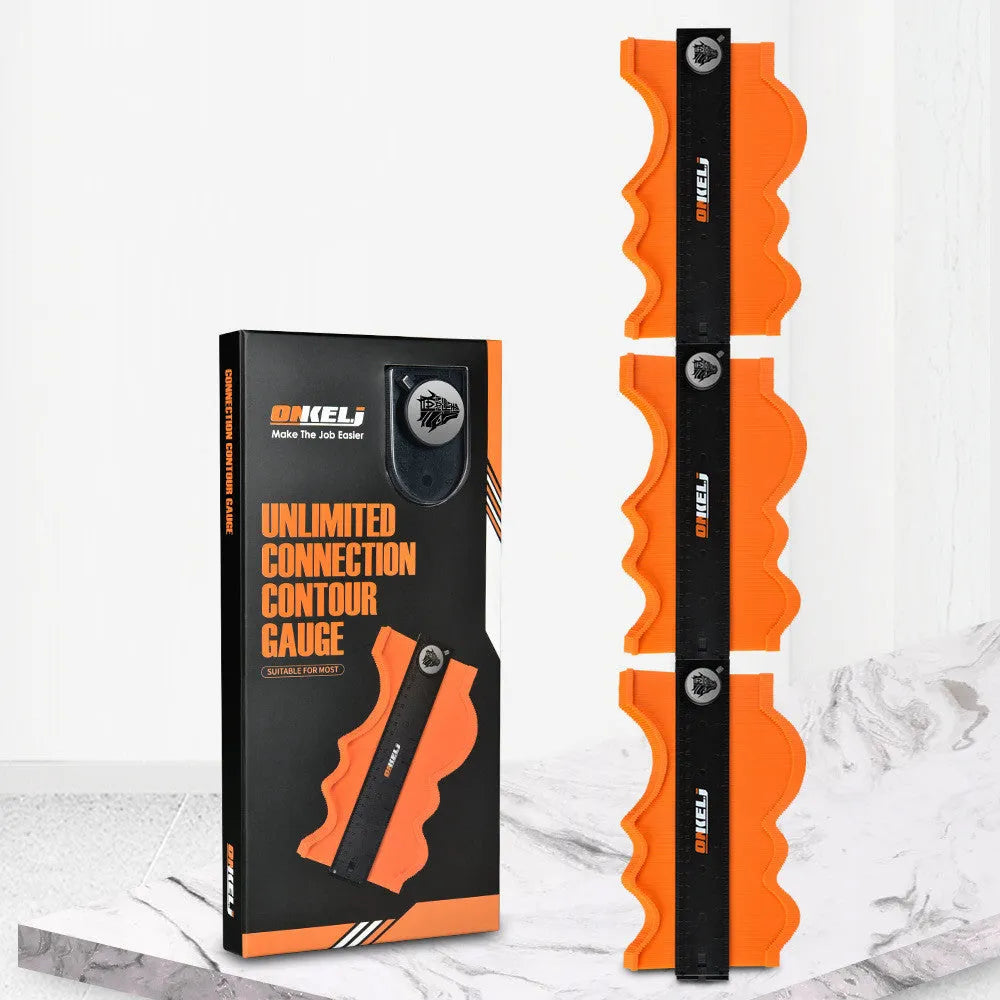

Select this contour gauge for its unlimited stitching capability that handles extended contours beyond fixed-length tools, combined with the lock mechanism that preserves captured profiles during transfer operations. The 1mm accuracy provides confidence in measurement results, while the substantial 265mm × 130mm × 27mm dimensions offer practical working area for most common profiling tasks. It represents a functional tool designed specifically for accurate shape transfer rather than general measurement applications.
