Dali 4S Lithium Iron Phosphate Battery Protection Board with Passive Balancing for 12V Systems

This Dali battery protection board, or Battery Management System (BMS), is a core component for constructing a safe and reliable 12V power source using lithium iron phosphate (LiFePO4) cells. It is specifically designed to manage a battery pack consisting of four cells connected in series (4S), the standard configuration for a nominal 12V system. Its primary role is to safeguard the battery pack by continuously monitoring key parameters and disconnecting the load or charge source if unsafe conditions are detected. Available in an extensive range of current handling capacities, from 15A to 500A, it caters to a wide variety of applications, from small-scale projects to high-power energy storage systems. The inclusion of passive cell balancing and a practical same-port design makes it a functional choice for DIY battery builders and system integrators.

Features and Construction

The board's functionality is defined by its electrical specifications and physical construction, which are tailored for LiFePO4 chemistry and user installation.

Material and Build

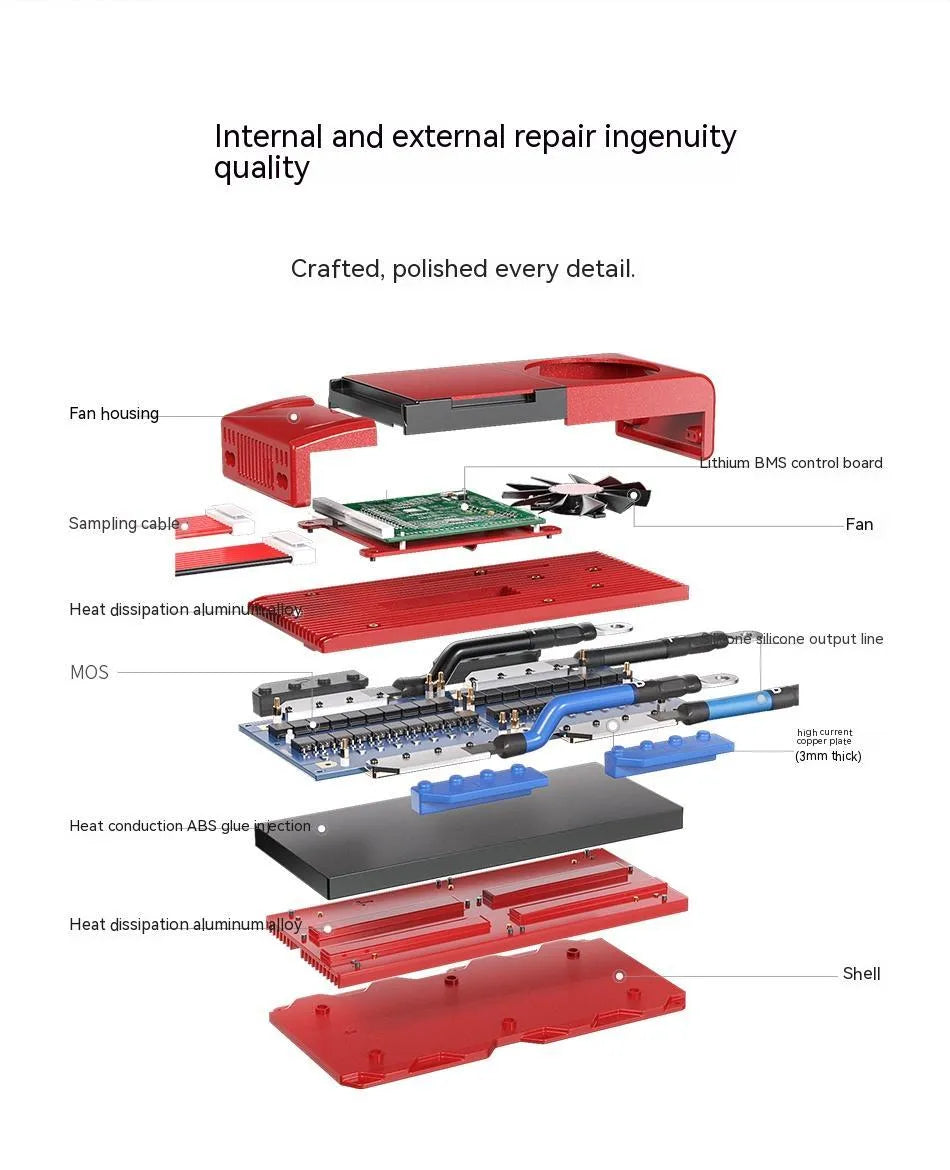

The protection board is built on a standard PCB populated with the necessary electronic components to perform its protection and management duties. Key components include MOSFETs that act as solid-state switches for the high-current path, resistors for the passive balancing circuit, and an integrated circuit (IC) that serves as the brain, monitoring cell voltages and pack current. Models specified with a fan incorporate a small cooling fan directly onto the board, which activates to dissipate heat generated by the MOSFETs during high-current operation, aiding in maintaining performance and reliability.

Size and Practical Fit

The source text does not provide specific physical dimensions for the board. When selecting a model, users should consider the current rating required for their application to ensure the board can handle the peak and continuous currents of their system. Higher current models, particularly those equipped with a fan, may have a larger physical footprint to accommodate larger MOSFETs and the fan assembly. It is advisable to check the available installation space in your battery enclosure or project box before purchase.

Uses and Placement

This BMS is suited for various applications where a managed 12V LiFePO4 battery pack is needed, prioritising safety and pack longevity.

Event or Professional Use

For professional, marine, RV, or off-grid power applications, higher-current models (100A and above) provide the robust protection needed for systems powering inverters, electric motors, or substantial lighting arrays. The fan-cooled versions of these high-current boards are particularly relevant here, as they are designed to sustain performance under prolonged high-load conditions, which are common in such settings. The balancing function is critical in these applications to maximise the cycle life and usable capacity of the often larger, more expensive battery packs employed.

Everyday Home Use

For DIY projects, home energy storage, solar power setups, electric scooters, or backup power systems, the lower to mid-range current models (15A to 80A) offer a cost-effective way to build a safe 12V battery. The same-port design significantly simplifies the wiring process, requiring only a single connection to the battery's main positive and negative terminals, which is a considerable advantage for hobbyists and those new to lithium battery assembly. Even in smaller packs, the passive balancing helps prevent individual cells from drifting out of voltage sync over time.

Benefits and Buying Value

The value of this protection board lies in its targeted functionality, range of options, and the safety it brings to a DIY lithium battery project.

Reuse and Low Maintenance

By protecting the battery pack from destructive conditions like over-discharge and short circuits, the BMS directly contributes to the long-term usability of the cells. The passive balancing function requires no user intervention; it works automatically during the charging cycle to slowly correct minor voltage differences between cells. This low-maintenance approach to cell management helps preserve the overall health and capacity of the battery pack over many charge and discharge cycles.

Why Choose This Product

The key decision points when selecting this Dali BMS are its specific compatibility with 4S LiFePO4 chemistry and the wide spectrum of current ratings. This allows for precise matching to your project's power requirements without overpaying for excessive capacity. The option to select a fan-cooled model for high-current applications provides an added layer of thermal management. As a dedicated protection device, it focuses on delivering the essential monitoring and switching functions needed for a safe 12V lithium battery, based on the clearly stated specifications.
